Technical information High-definition & high-speed imaging
[Ideal imaging]
- Provides extremely high-definition imaging by integrated control of original high-speed AF mechanism, programmable illumination, camera setting conditions, scrolling, and stage vibration isolation.
- Deep focus imaging using a high-precision lens.
- Simultaneous imaging of two or more faces of concavo-convex products.
[Imaging free from tricks]
- Generates images (4M RAW) free from tricks, not corrected or compressed, and connects real, not synthetic, images. Processes the image directly. Can process and save large-capacity image data.
[Ideal high-speed processing]
- Uses dedicated hardware & speeding-up algorithm such as AF method and optimized parallelizing image processing.
| No. | Function | Description | Detail |
| 1 |

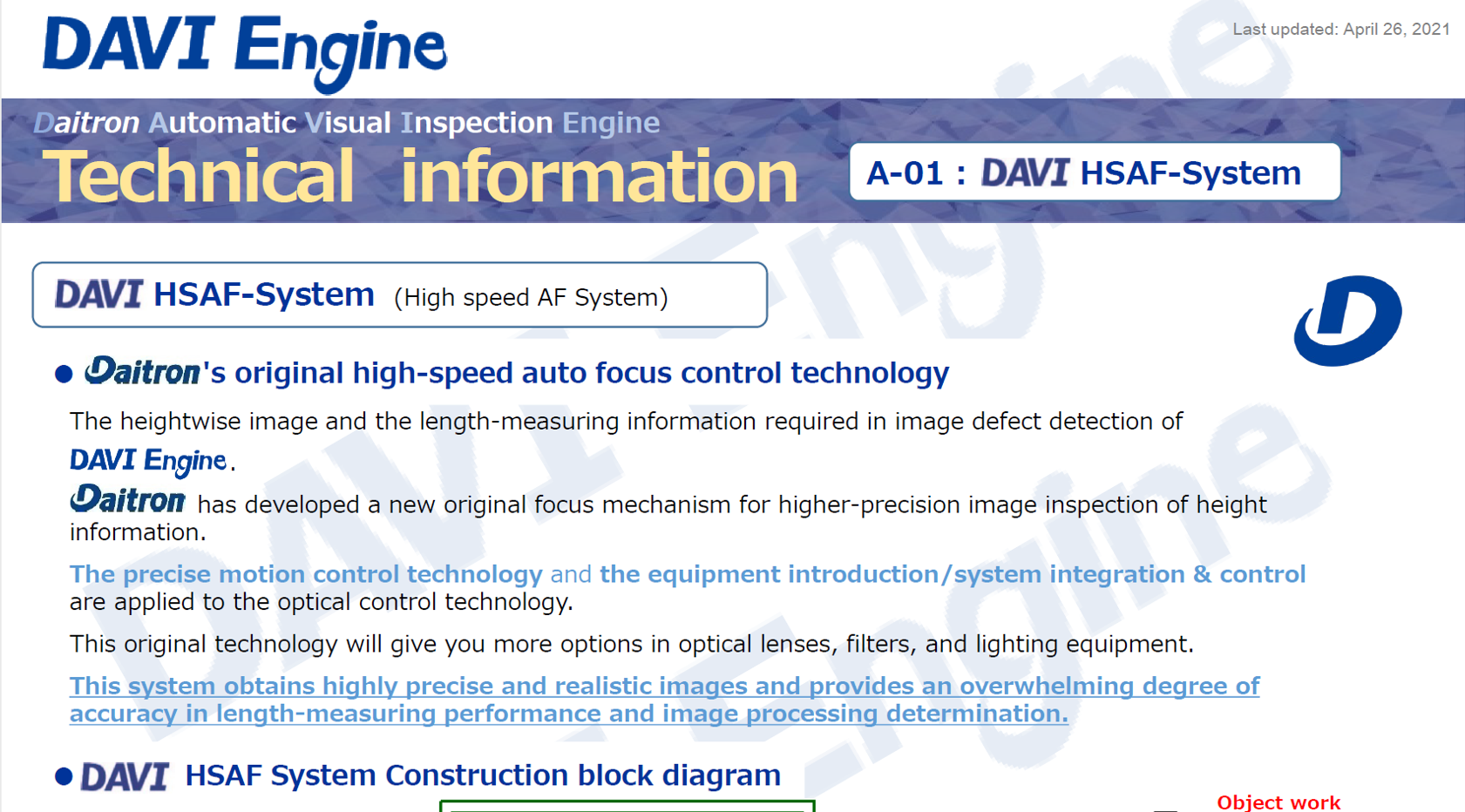

(High Speed Auto Focus System)
|
The height information, which is essential to detect image defects in DAVI Engine. A new focus mechanism originally developed to improve the accuracy of the height direction images and the length measuring information. |
|
|
- Focus sample video |
|||
| 2 |
|

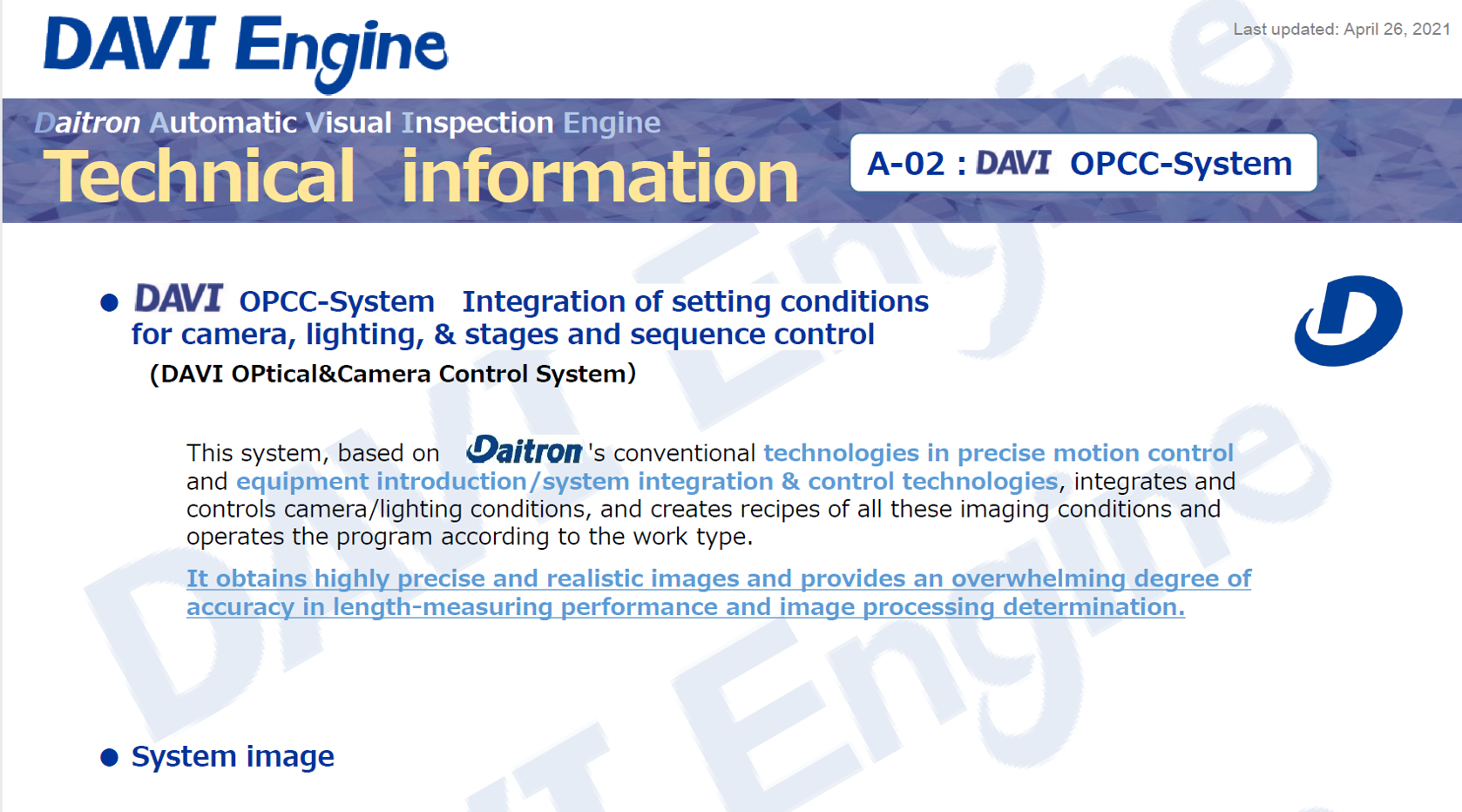

This is a system for integrated control of the imaging conditions of DAVI Engine. Controls the DAVI HSAF-System as well as the setting conditions for cameras, lights, and step imaging moving. Moreover integrates them to provide the recipe. |
|

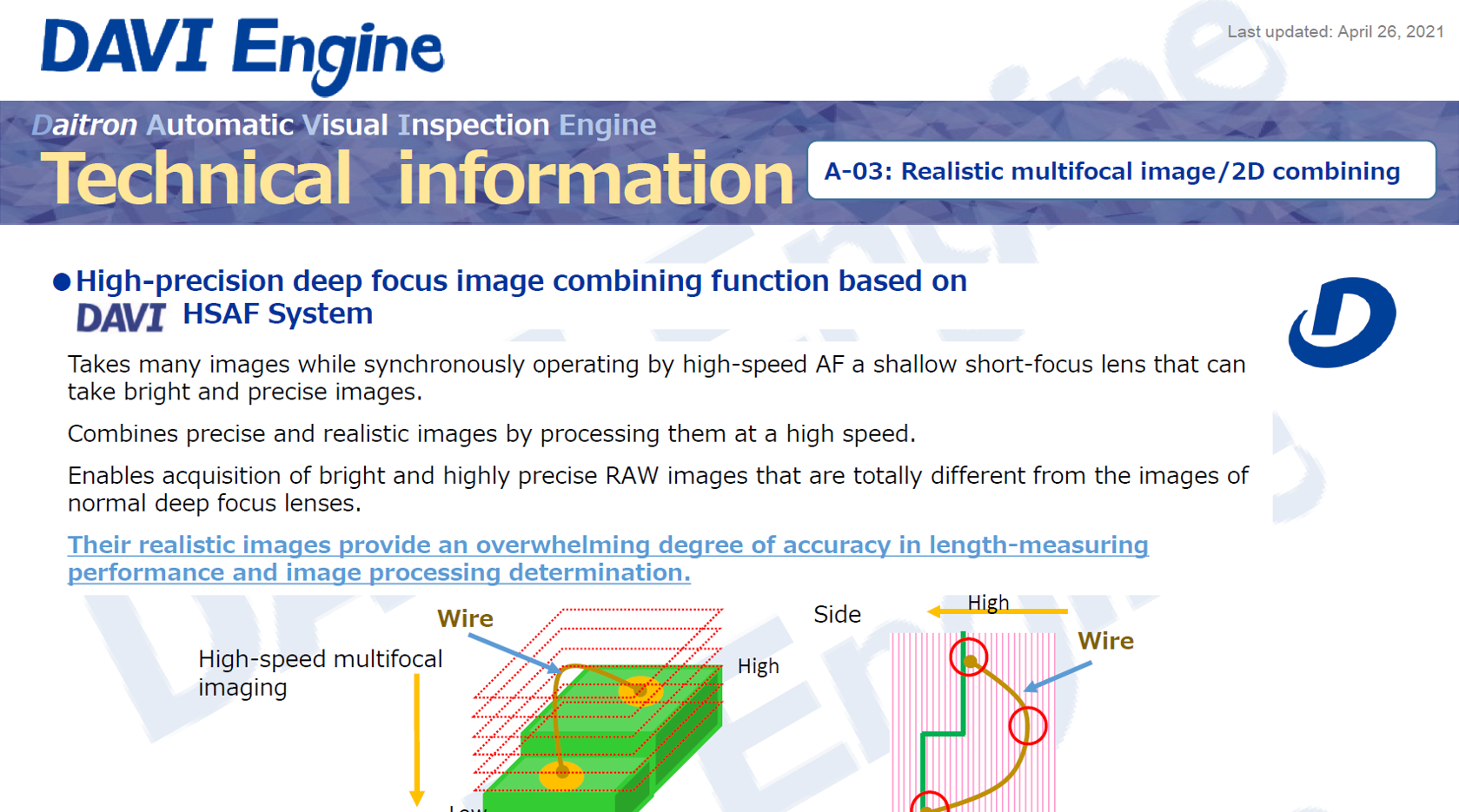

| 3 | Real Multifocal image / 2D combining |
Allows acquisition of bright RAW images with high precision and high accuracy totally different from those obtained by a normal lens (deep focus/wide field of view). Creates panoramic images by step serial shooting and connection processing by application of DAVI OPCC-System. |
|
