Product Information

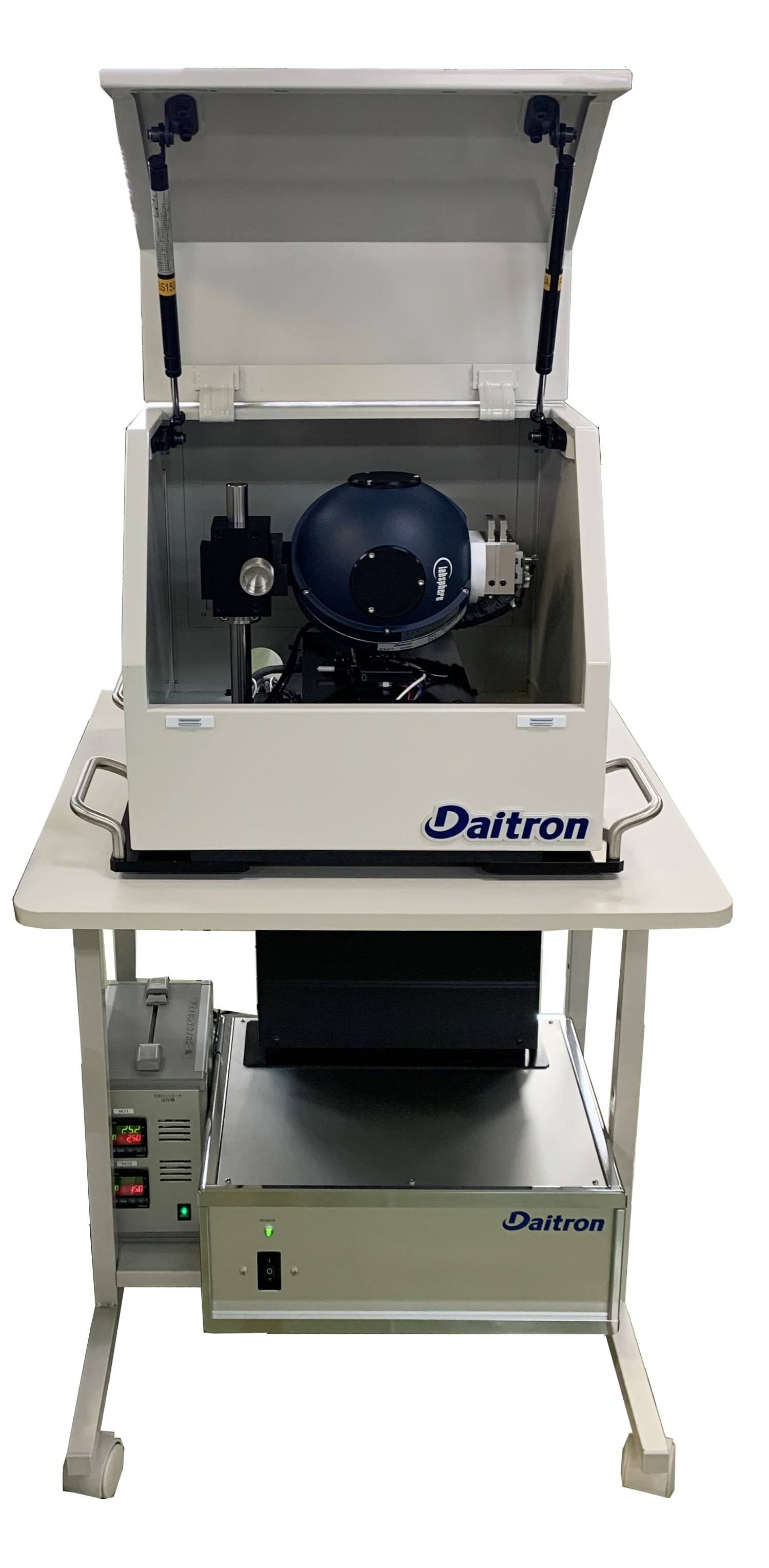

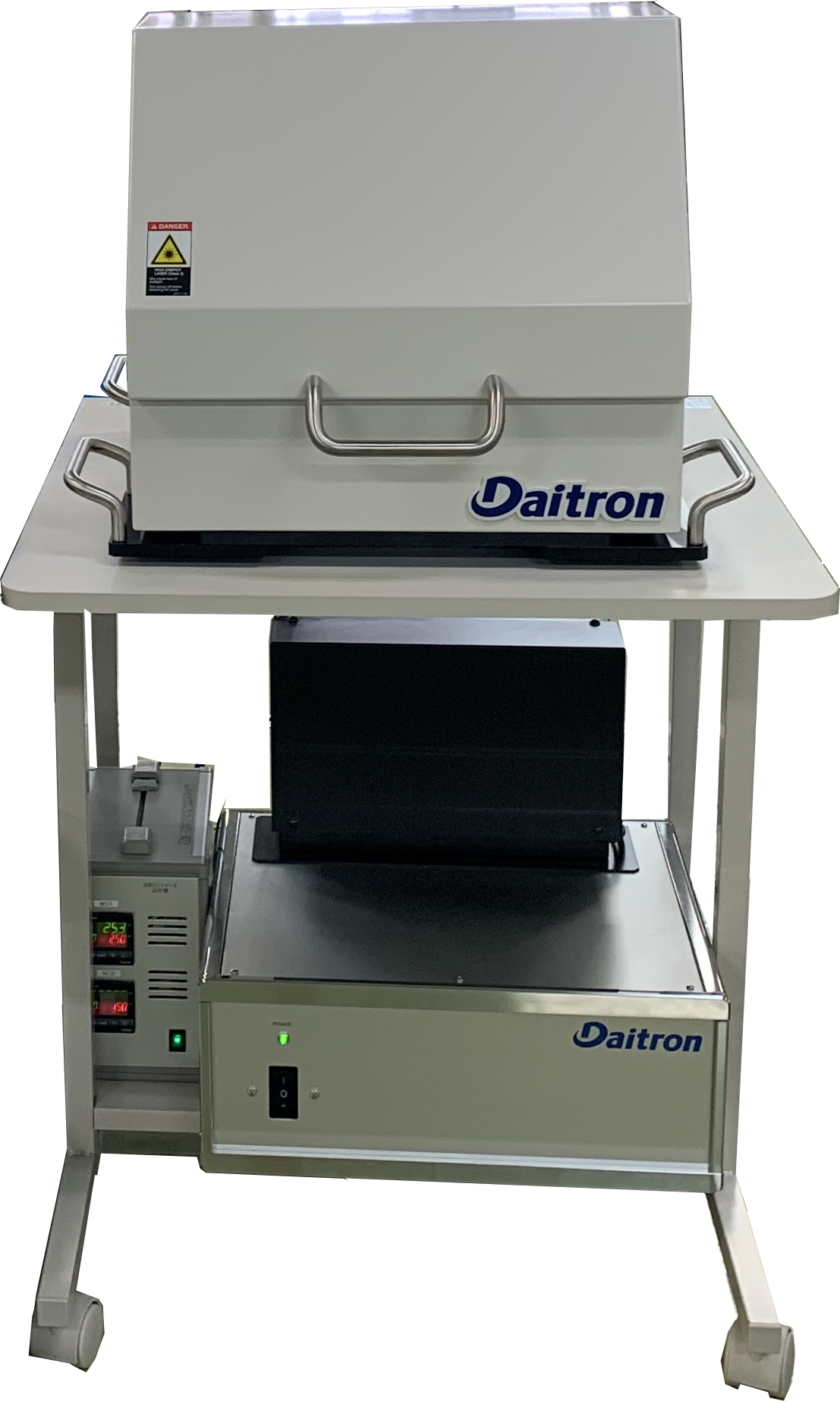

Short Pulse Tester Unit DAPT-2100
| Product Name | Short Pulse Tester Unit |
|---|---|
| Type | DAPT-2100 |
| Manufacturer | Daitron Co., Ltd. |
| Manufacturer logo |  |
Overview
This is characterization equipment for laser diodes.
The pulse or CW drive enables electrical and optical measurements of various laser diodes.
The measurement environment most suitable to the device can be provided.
A system that automatically performs a measurement determination just with the device set.
Feature
- Measures pulse shapes directly
- Compact design
- Allows detail measurement of the neighborhood of Ith and Vth
- Allows high-speed and multipoint I-L/I-V measurement
- Fully equipped with the measurement commands required for emitting laser diode characterization
- Allows variable pulse measurement
- Equipped with 3D sensing laser supporting driver for LiDAR
- Versatility based on Ethernet, and various characterizations in combination of optical equipment options and custom jigs
Main Specifications
Equipment specs
| Item | Range | Accuracy | Notation |
| Current | 60A | F.S.× ±1% | Iop, Ith |
| Pulse width | 50~500nsec | Set value ±1% ±10nsec | |
| Pulse period | 50µsec~2msec | Set value ±2% ±10nsec | |
| Voltage | 30V | F.S.× ±1% | Vop, Vth |
| Optical output | 100W | F.S.× ±1% | Pop, Pth |
| Device supply | Manual work by the operator | ||
| Device storage | Manual work by the operator |
Currently these products does not comply with US/EU electrical safety standards. Any customer who may require UL, CE, etc. please let Daitron know.
