製品情報

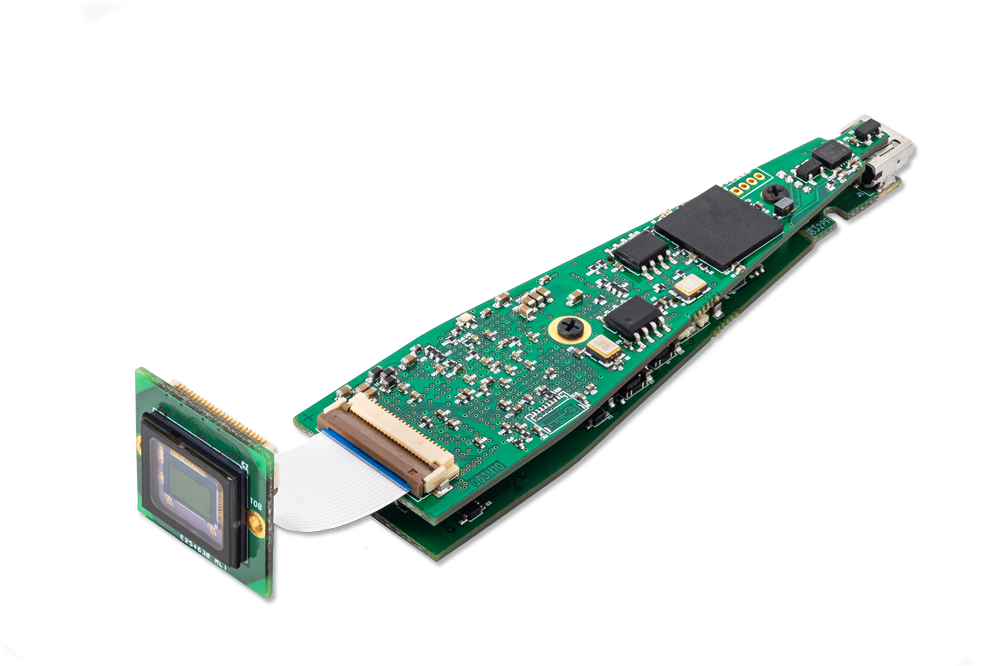

UVC対応 FullHD小型USBカメラモジュール IOflexシリーズ

製品名 | UVC対応 FullHD小型USBカメラモジュール |
---|---|
型式 | IOflexシリーズ |
メーカー | NET GmbH |
メーカーロゴ | |
資料 |
概要
主に歯科用・口腔内カメラへの組み込みに最適な小型のFullHD USBカメラモジュールです。
高速オートフォーカスレンズ付き・ケース付きの提案も可能
特長
・口腔内カメラ向けに開発設計されたカメラモジュール
・LED制御、液体レンズ制御に対応した基板構成
・高速オートフォーカス
・USB3.0、USB2.0両ポートでの動作可能(FullHD/30fps)
主な仕様
Camera | Sensor format | 1/2.8“ |
Sensor | IMX462 | |
Type | CMOS | |
Native resolution [pixel] | 1920 x 1080 / Full HD | |
Frame rate | 30 fps | |
Color depth | 12 bit | |
Shutter | rolling | |
Board size (length x width) | 81mm x 21mm | |
Power consumption | P = 2.5W, U = 5V | |
Illumination support | max. 70mA LED current; | |
optional: multi-LED; | ||
optics support: onboard liquid lens driver | ||
Interfaces | USB 2.0 | |
UVC | ||
Max. cable length | 3m | |
Operating temperature | 0 - 30°C | |
Software | Image focussing | NET IP Core |
Image file format | MJPEG | |
Included software | software development kit (SDK) | |
Operating system | Windows, Mac, Linux | |
Customizable | Image properties | •brightness |
image settings | •contrast | |
•white balance | ||
•saturation | ||
•hue | ||
•color control | ||
•AE settings | ||
Image display | •horizontal flip | |
•mirror | ||
•binning | ||
Image recording | •operation mode (VIS, IR, fluorescence) | |
•still image capture | ||
•freeze | ||
•sleep |
