180万lx自然空冷式ライン照明 IDBC-LSRHシリーズ
| 製品名 | 180万lx自然空冷式ライン照明 |
|---|---|
| 型式 | IDBC-LSRHシリーズ |
| メーカー | 株式会社レイマック |
| メーカーロゴ |  |
| メーカーサイト | メーカー製品サイトはこちら |
概要
専用電源アプリを用いてPCから100mmごとに明るさ調整可能
特長

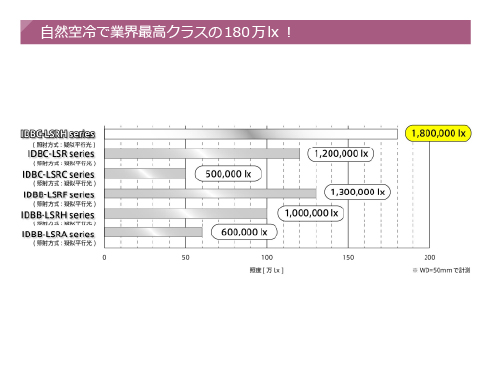

自然空冷で180万lxを実現。※WD=50mm

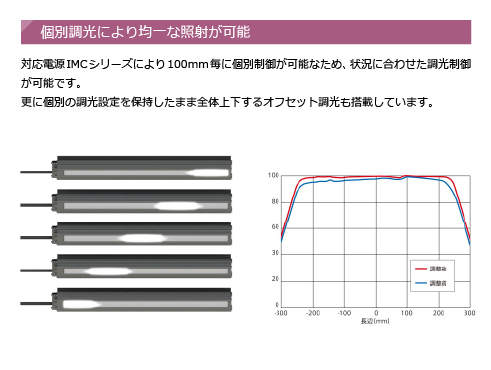

対応コントローラのアプリを用いることで、パソコンから100mm毎に個別制御が可能。
発光サイズは100mm間隔で3000mmまでラインナップ。
（集光レンズ付き仕様は1000mmまでラインナップ）
従来品 IDBB-LSRHシリーズと比べて、

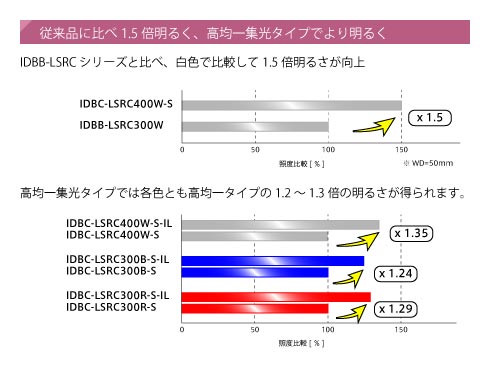

・白色での比較で、明るさが約1.8倍に向上

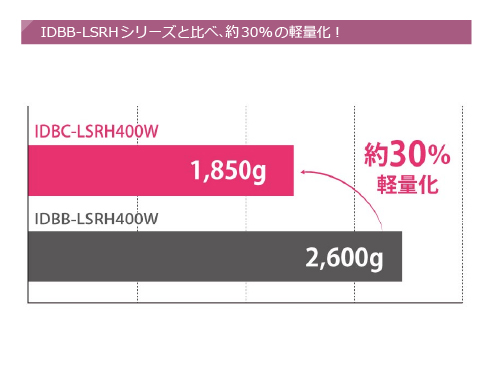

・約30％の軽量化を実現

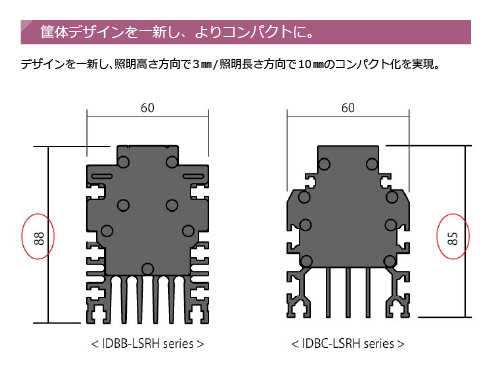

・照明高さ方向で3mm/照明長さ方向で10mmのコンパクト化を実現
・従来とは違い、透過率の異なる各種拡散板の追加・交換も容易
自然空冷タイプなのでクリーンルームなどの環境でも使用可能です。
主な仕様
高輝度 – IDBC-LSRH series
|
型式 |
発光色 |
外形寸法（長さ/幅/高さ） |
|
W |
143.5mm/60mm/85mm |
|
|
W |
243.5mm/60mm/85mm |
|
|
W |
343.5mm/60mm/85mm |
|
|
W |
443.5mm/60mm/85mm |
|
|
W |
543.5mm/60mm/85mm |
|
|
W |
643.5mm/60mm/85mm |
|
|
W |
743.5mm/60mm/85mm |
|
|
W |
843.5mm/60mm/85mm |
|
|
W |
943.5mm/60mm/85mm |
|
|
W |
1043.5mm/60mm/85mm |
|
|
W |
1143.5mm/60mm/85mm |
|
|
W |
1243.5mm/60mm/85mm |
|
|
W |
1343.5mm/60mm/85mm |
|
|
W |
1443.5mm/60mm/85mm |
|
|
W |
1543.5mm/60mm/85mm |
|
|
W |
1643.5mm/60mm/85mm |
|
|
W |
1743.5mm/60mm/85mm |
|
|
W |
1843.5mm/60mm/85mm |
|
|
W |
1943.5mm/60mm/85mm |
|
|
W |
2043.5mm/60mm/85mm |
|
|
W |
2167mm/60mm/85mm |
|
|
W |
2267mm/60mm/85mm |
|
|
W |
2367mm/60mm/85mm |
|
|
W |
2467mm/60mm/85mm |
|
|
W |
2567mm/60mm/85mm |
|
|
W |
2667mm/60mm/85mm |
|
|
W |
2767mm/60mm/85mm |
|
|
W |
2867mm/60mm/85mm |
|
|
W |
2967mm/60mm/85mm |
|
|
W |
3067mm/60mm/85mm |
高均一型 – IDBC-LSRH-S series
|
型式 |
発光色 |
外形寸法（長さ/幅/高さ） |
|
W/B |
143.5mm/60mm/85mm |
|
|
W/B |
243.5mm/60mm/85mm |
|
|
W/B |
343.5mm/60mm/85mm |
|
|
W/B |
443.5mm/60mm/85mm |
|
|
W/B |
543.5mm/60mm/85mm |
|
|
W/B |
643.5mm/60mm/85mm |
|
|
W/B |
743.5mm/60mm/85mm |
|
|
W/B |
843.5mm/60mm/85mm |
|
|
W/B |
943.5mm/60mm/85mm |
|
|
W/B |
1043.5mm/60mm/85mm |
|
|
W/B |
1143.5mm/60mm/85mm |
|
|
W/B |
1243.5mm/60mm/85mm |
|
|
W/B |
1343.5mm/60mm/85mm |
|
|
W/B |
1443.5mm/60mm/85mm |
|
|
W/B |
1543.5mm/60mm/85mm |
|
|
W/B |
1643.5mm/60mm/85mm |
|
|
W/B |
1743.5mm/60mm/85mm |
|
|
W/B |
1843.5mm/60mm/85mm |
|
|
W/B |
1943.5mm/60mm/85mm |
|
|
W/B |
2043.5mm/60mm/85mm |
|
|
W/B |
2167mm/60mm/85mm |
|
|
W/B |
2267mm/60mm/85mm |
|
|
W/B |
2367mm/60mm/85mm |
|
|
W/B |
2467mm/60mm/85mm |
|
|
W/B |
2567mm/60mm/85mm |
|
|
W/B |
2667mm/60mm/85mm |
|
|
W/B |
2767mm/60mm/85mm |
|
|
W/B |
2867mm/60mm/85mm |
|
|
W/B |
2967mm/60mm/85mm |
|
|
W/B |
3067mm/60mm/85mm |
高輝度集光型 – IDBC-LSRH-IL series
|
型式 |
発光色 |
外形寸法（長さ/幅/高さ） |
|
|
143.5mm/60mm/85mm |
|
|
|
243.5mm/60mm/85mm |
|
|
|
343.5mm/60mm/85mm |
|
|
|
443.5mm/60mm/85mm |
|
|
|
543.5mm/60mm/85mm |
|
|
|
643.5mm/60mm/85mm |
|
|
|
743.5mm/60mm/85mm |
|
|
|
843.5mm/60mm/85mm |
|
|
|
943.5mm/60mm/85mm |
|
|
|
1043.5mm/60mm/85mm |
高均一集光型 – IDBC-LSRH-S-IL series
|
型式 |
発光色 |
外形寸法（長さ/幅/高さ） |
|
W/B |
143.5mm/60mm/85mm |
|
|
W/B |
243.5mm/60mm/85mm |
|
|
W/B |
343.5mm/60mm/85mm |
|
|
W/B |
443.5mm/60mm/85mm |
|
|
W/B |
543.5mm/60mm/85mm |
|
|
W/B |
643.5mm/60mm/85mm |
|
|
W/B |
743.5mm/60mm/85mm |
|
|
W/B |
843.5mm/60mm/85mm |
|
|
W/B |
943.5mm/60mm/85mm |
|
|
W/B |
1043.5mm/60mm/85mm |
